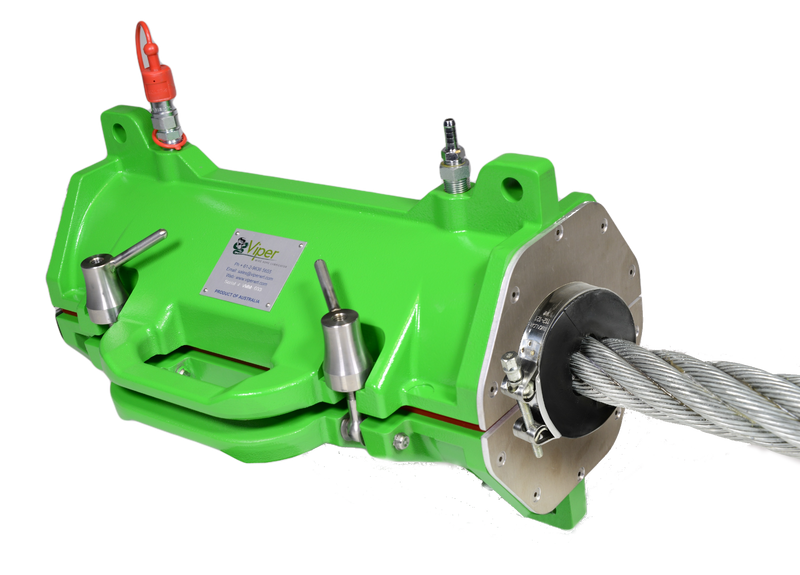

VIPER WRL MAXI MKII
SUPERIOR PROTECTION OF WIRE ROPES – 50MM TO 165MM
Fast and effective lubrication of wire ropes with a diameter between 50mm to 165mm. The Viper WRL MKII Maxi lubricates ropes at up to 2000mt/hour.
Recommended for use with ROV Cables, Vessel Crane Ropes, Underwater Offshore Wire Ropes and Drag Lines.
The Viper Wire Rope Lubricator provides grease penetration, moisture displacement and total coverage by forcing lubricant into the core of the rope.
Viper Maxi MKII is suitable for Wire Ropes 50mm to 165mm

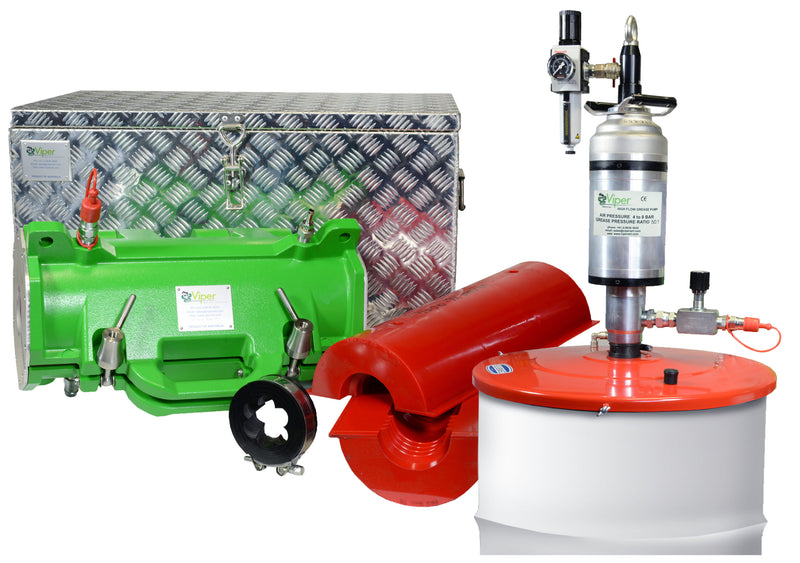

VIPER MAXI KIT INCLUSIONS
The viper wire rope lubricator is supplied as a complete package, with all of the components required to get you started. Simply order the kit and then select and order the seals and scrapers to suit the rope size to be lubricated.

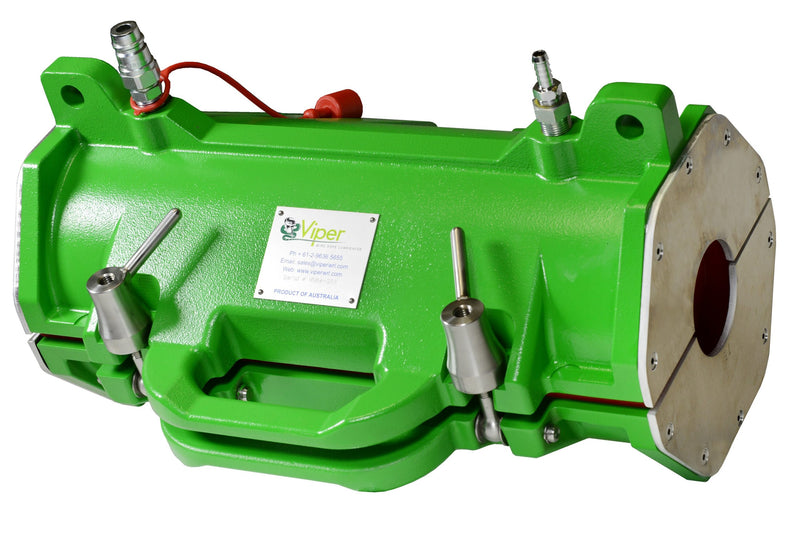

VIPER MAXI MK II HIGH STRENGTH, CAST ALUMINIUM COLLAR
The Maxi MKII Collar is constructed from high strength Aluminium Alloy, precision machined to tight specifications. The Collar is completed with stainless steel hardware to provide maximum durability and corrosion protection. The new Maxi MKII can lubricate ropes up to 165mm (6-1/2″). The unit is designed for ease of use having handles located on each half of the collar.
CHOICE OF TWO PUMPS 4.5KG/MIN OUTPUT & 13KG/MIN OUTPUT IN 190KG DRUM SIZE
Two pump options are available. The standard unit delivers 4.5kg/min, while the optional high volume unit delivers 13kg/min for fast lubrication of large diameter ropes, for further reduced down time. Both pumps are supplied in 190kg drum size. Viper recommends the use of the high flow pump for ropes larger than 85mm.
TWIN LUBRICANT INLETS
The Maxi Viper collar comes complete with twin lubricant inlets that provide maximum lubricant coverage for large wire ropes, this coupled with the high volume grease pumps ensures effective lubrication occurs.
AIR REGULATOR/MOISTURE TRAP WITH GAUGE AND ISOLATION VALVE
10M HIGH PRESSURE SUPPLY HOSE FITTED WITH COUPLING BOTH ENDS
CLEAR LUBE DRAIN HOSE
1200KG RATED RATCHET RETAINING STRAPS & BOW SHACKLES
HEAVY DUTY FULLY WELDED ALUMINIUM STORAGE CASE
WHY CHOOSE THE VIPER MAXI MKII WIRE ROPE LUBRICATOR
Beneficial quality
What this means for you
In Build Handles
- Enables ease of mounting unit to wire rope
4.5KG High Pressure Pump
- Ensures consistent lubricant delivery across a wide range of ambient temperatures
- Less downtime – Due to the high volume flow rate of the pump, meaning high speed lubrication up to 2000m/hr
Option for 13KG high pressure , high flow pump
- High speed lubrication of ropes allows quicker lubrication, hence less downtime
- Enables larger diameter and longer ropes to be lubricated
Seal Design
- Excess lubrication is captured via a second seal chamber meaning low environmental impact as lubricant is contained.
- Seal length enables longer dwell time for better lubricant penetration for larger diameter ropes
Metal Alloy Scraper Plate
- Enables safe entry of broken wire ropes into the seal ensuring the rope and seal is not damaged.
Suitable for a wide range of wire ropes – Diameters 50mm to 165mm
- Enables lubrication of a broad range of rope diameters with one Viper Kit
APPLICATION
- ROC Cables
- Vessel Crane Ropes
- Steel Wire Ropes for Shaft Mining
- Underwater Offshore Wire Ropes
- Drag Lines
Order separately
- Highly durable, wear resistant polyurethane seals
- Aluminum Scrapers
- Viper Wire Rope Cleaner
- ROCOL Lubricant
